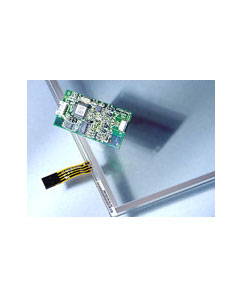

TR-4000 四线电阻式

作者： eTurboTouch 时间：2008-12-11 源于：eTurboTouch 总点击：

【导读】：宇辰光电TR-4000四线电阻式触控面板具有稳定性佳、耗电量低及透光率高的特性，满足了中小尺寸产品应用的需求。TR-4000也提供多样的输入方式，包括手指、戴手套或触控笔方式。TR-4000四线电阻式触控面板是应用在可携式装置、网络电话、办公室自动化设备、医疗设备及消费

TR-4000 四线电阻式

宇辰光电TR-4000四线电阻式触控面板具有稳定性佳、耗电量低及透光率高的特性，满足了中小尺寸产品应用的需求。TR-4000也提供多样的输入方式，包括手指、戴手套或触控笔方式。TR-4000四线电阻式触控面板是应用在可携式装置、网络电话、办公室自动化设备、医疗设备及消费性电子产品最具价格优势的选择。

TR-4000 四线电阻式

详细说明：

MECHANICAL	Available Size Input Method Touch Activation Force Glass Thickness Option	2” to 15” Finger, gloved hand or touch stylus Typically less than 80g 0.7mm (for sensor size under 5.7”) 1.1mm (for sensor size under 8.4”) 1.8mm (for sensor size above 5.7”) 2.8mm (for sensor size above 12.1”) Palm rejection
ELECTRICAL	Insulation Resistance Chattering Time Linearity	20M Ω or more @ DC 25V 10 ms or less ±1.5% error or less for X axis ±1.5% error or less for Y axis
OPTICAL	Transmittance Surface Finish	83%±5% Anti-glare or polish
ENVIRONMENTAL	Temperature High Temperature and Humidity	Operating: 0℃ to 50℃ Storage: -30℃ to 70℃ 60℃ and 90% RH for 120hours
DURABILITY	Surface Hardness Touch Life	3H or higher per ASTM-D3363 Capable of 1M functional touches in one position without failure
WARRANTY		1-year limited warranty
