伍丰 CrossbowPOS机简介

Crossbow是伍丰针对於餐饮和销售业的需求所开发的最佳解决方案。铝合金一体成型的外壳，使得 Crossbow能在最严酷的工作环境下正常运作。搭配双萤幕 Crossbow 不只是一台最先进的POS系统，还能运用第二萤幕与客户互动，不管是重覆确认已购商品项目售价、宣传店内优惠产品、促销方案或是播放广告来增加获利，让Crossbow比一般POS更优秀。不仅能掌握当今的销售e化的需求，又能准确的提升产品销售过程与服务品质，是工作上的好伙伴。

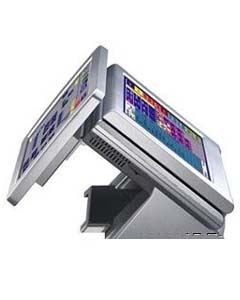

伍丰 CrossbowPOS机

伍丰 CrossbowPOS机技术参数

Model:	H-823	H-820
System Platform	Pentium 3	Pentium 4
Processor	VIA Luke Eden-N 1GHz (embedded)	Intel Celeron 2GHz (socket 478)
Memory	256MB standard, maximum 1GB (1 x 184-pin DDR)	256MB standard, maximum 1GB (1 x 184-pin DDR)
Touch LCD Display
Size / Resolution	12.1" TFT LCD / 800 x 600
Brightness	200 cd/㎡
Touch Screen	ELO 5-wire Resistive / Fujitsu 4-wire Resistive
I/O Connectivity
Serial Port	● 5 x External: COM1, COM2, COM6 (D-Sub),	● 3 x External: COM1, COM2 (D-Sub),
	COM4 & COM5 (RJ45) for VFD & 2nd Display	COM5 (RJ45) for VFD or 2nd Display
	Touchscreen	Touchscreen
	● 1 x Internal: COM3 for Primary Touchscreen	● 1 x Internal: COM3 for Primary Touchscreen
Parallel Port	1 x Bi-directional Parallel
Standard USB Port	6 x 2.0 USB (4 x external, 2 x internal)	4 x 2.0 USB (2 x external, 2 x internal)
Cash Drawer Port	1 x 12V RJ11 (single/dual)
Mouse Port	N/A
Keyboard Port	1 x PS/2 keyboard
LAN Port	1 x RJ45 10/100/1000 Base-T (Gigabit LAN)	1 x RJ45 10/100 Base-T
VGA Port	1 x VGA for secondary LCD Display
Audio Port	N/A	Line-out
CD-ROM port	N/A	1 x 36-pin SCSI
IDE Hard Disk Drive	Built-in 3.5" 40GB (standard)
Compact Flash	CF slot available
Speaker	Integrated 3W stereo speakers
Power Supply	250W External Power Adapter
Construction	Aluminum Die-casting Housing
Housing Color	Silver/Black
O/S Supported	Win2000, XP (Pro, Embedded), WEPOS
Dimensions ( W x H x D)	310 x 270 x 248 mm
Weight	12 kgs
EMI/Safety	CE, FCC, UL, RoHS
Operating Temperature	0℃ ~ 35℃
Optional Peripherals
Magnetic Stripe Card Reader	Integrated MCR Single/Dual/Triple Track
MCR 2-in-one, MCR 3-in-one	Integrated MCR+i-Button / MCR+RFID / MCR+Fingerprint / MCR+Smartcard+i-Button
Secondary Touch LCD Display	12.1" / 8.4" TFT LCD (Resistive Touch/Non-touch)
Customer Pole Display	Integrated VFD / LCD Customer Pole Display
