宇宙光电TXD-1000/2000/3000系列触控模块
作者： 51touch 时间：2009-01-06 源于：中国触摸屏网 总点击：
【导读】：宇宙光电TXD-1000/2000/3000系列触控模块简介
TXD-1000/2000/3000系列触控模块采用宇宙光电TR-4000四线电阻式触控面板，符合高穿透率、弹性输入方式及低耗电需求的应用。高品质的LCD模块主要来自世界大厂友达光电及LG-Philips等。TXD系列触控

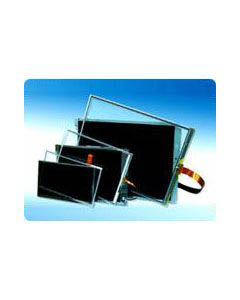

宇宙光电TXD-1000/2000/3000系列触控模块简介
TXD-1000/2000/3000系列触控模块采用宇宙光电TR-4000四线电阻式触控面板，符合高穿透率、弹性输入方式及低耗电需求的应用。高品质的LCD模块主要来自世界大厂友达光电及LG-Philips等。TXD系列触控模块提供多样性3.5"到10.4"尺寸，可应用在PDA/PDA手机、汽车应用、电子书及彩券机等等。该款触摸屏 控制模块有许多优点：
- 高品质液晶模块与触控面板
- 搭配世界大厂认可的TR-4000四线电阻式触控技术
- 可使用手指、手套或触控笔方式输入
- 提供3.5”~10.4”不同尺寸组合
- 应用范围:PDA∕PDA手机,电子书,汽车应用,彩券机
- 低耗电

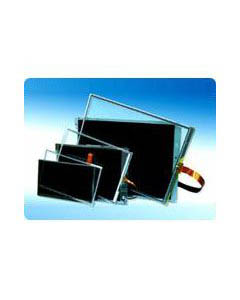

宇宙光电TXD-1000/2000/3000系列触控模块宇宙光电TXD-1000/2000/3000系列触控模块技术参数
| SIZE | 3.5" | 5.6" | 6.4" | 6.5" |
| Model Name | TRD-1035R(U) | TRD-1056R(U) | TRD-2064R(U) | TRD-3065R(U) |
| TOUCHSCREEN SENSOR | ||||
| Sensor Model |
TR-4000 Four-Wire Resistive |
|||
| DISPLAY | ||||
| LCD Module | 3.5" a-Si TFT LCD | 5.6" a-Si TFT LCD | 6.4" a-Si TFT LCD | 6.5" a-Si TFT LCD |
|
Resolution (W x H) |
480 x 234 dot | 960 x 234 dot | 640 x RGB x 480 dot | 400 x RGB x 234 dot |
| Active Area
(W x H)
|
72 x 50.544 mm | 113.3 x 84.7 mm | 129.6 x 97.44 mm | 143.4 x 79.3 mm |
|
Dot Pitch (W x H) |
0.150 x 0.216 mm | 0.118 x 0.362 mm | 0.0675 x 0.203 mm | 0.1199 x 0.3385 mm |
| Color Configuration | RGB Delta | RGB Stripe | Stripe | RGB Vertical Stripe |
| Brightness w/o Touchscreen | 250 cd/㎡ | 300 cd/㎡ | 150 cd/㎡ | 374 cd/㎡ |
| Brightness w/ Touchscreen | 208 cd/㎡ | 249 cd/㎡ | 125 cd/㎡ | 451 cd/㎡ |
| Contrast Ratio | 150 : 1 | 150 : 1 | 400 : 1 | 400 : 1 |
| Response Time | 20ms (Rising), 30ms (Falling) | 15ms (Rising), 20ms (Falling) | 15ms (Rising), 25ms (Falling) | 10ms (Rising), 30ms (Falling) |
| Viewing Angle | +40°~-40°(L/R), +10°~-30°(U/D) (Min.) | +45°~-45°(L/R), +10°~-30°(U/D) (Min.) | +45°~-45°(L/R), +15°~-35°(U/D) | +65°~-65°(L/R), +50°~-65°(U/D) |
| Dimensions (WxHxD) | 83 x 60.5 x 4.5 mm | 126.5 x 100 x 6.8 mm | 159 x 117 x 6.4 mm | 157.2 x 89.7 x 8.0 mm |
| Weight | TBD | 145 ± 10 g | 165 ± 10 g | 165 g (Typical) |
| Warranty | 1 Year LCD Module
1 Year TR-4000 Sensor 5 Years TC-400R(U) Controller
|
|||
| SIZE | 7" | 7" | 8.4" | 10.4" |
| Model Name | TRD-1070R(U) | TRD-3070R(U) | TRD-1084R(U) | TRD-1104R(U) |
| TOUCHSCREEN SENSOR | ||||
| Sensor Model | TR-4000 Four-Wire Resistive | |||
| DISPLAY | ||||
| LCD Module | 7" a-Si TFT LCD | 7" a-Si TFT LCD | 8.4" a-Si TFT LCD | 10.4" a-Si TFT LCD |
|
Resolution (W x H) |
800RGB x 480 dot | 480 x RGB x 234 dot | 800 x 600 dot | 800 x 600 dot |
|
Active Area (W x H) |
152.4 x 91.4 mm | 154.08 x 86.58 mm | 170.4 x 127.8 mm | 211.1 x 158.4 mm |
|
Dot Pitch (W x H) |
0.1905 x 0.1905 mm | 0.107 x 0.370 mm | 0.123 x 0.123 mm | 0.264 x 0.264 mm |
| Color Configuration | RGB Stripe | RGB Vertical Stripe | RGB Vertical Stripe | RGB Vertical Stripe |
| Brightness w/o Touchscreen | 400 cd/㎡ | 400 cd/㎡ | 150 cd/㎡ | 350 cd/㎡ |
| Brightness w/ Touchscreen | 332 cd/㎡ | 332 cd/㎡ | 125 cd/㎡ | 291 cd/㎡ |
| Contrast Ratio | 300 : 1 | 400 : 1 | 250 : 1 | 350 : 1 |
| Response Time | 12ms (Rising), 18ms (Falling) | 10ms (Rising), 30ms (Falling) | 20ms (Rising), 30ms (Falling) | 10ms (Rising), 25ms (Falling) |
| Viewing Angle | +60°~-60°(L/R), +40°~-60°(U/D) | +65°~-65°(L/R), +65°~-50°(U/D) | +40°~-40(L/R), +30°~-10°(U/D) | +60°~-60°(L/R), +40°~-60°(U/D) |
| Dimensions (WxHxD) | 165 x 104 x 6 mm | 166 x 100 x 7 mm | 203.0 x 142.5 x 5.7 mm | 243 x 184 x 11 mm |
| Weight | 170 ± 10 g | 155 g (Typical) | 230 ± 10 g | 510 g |
| Warranty | 1 Year LCD Module
1 Year TR-4000 Sensor 5 Years TC-400R(U) Controller
|
|||
| *Specifications are subject to change without notice. | ||||
